Biogeochemical Cycles

Energy flows directionally through ecosystems, entering as sunlight (or inorganic molecules for chemoautotrophs) and leaving as heat during the many transfers between trophic levels. However, the matter that makes up living organisms is conserved and recycled. The six most common elements associated with organic molecules—carbon, nitrogen, hydrogen, oxygen, phosphorus, and sulfur—take a variety of chemical forms and may exist for long periods in the atmosphere, on land, in water, or beneath the Earth’s surface. Geologic processes, such as weathering, erosion, water drainage, and the subduction of the tectonic plates, all play a role in this recycling of materials. Because geology and chemistry have major roles in the study of this process, the recycling of inorganic matter between living organisms and their environment is called a biogeochemical cycle.

Water contains hydrogen and oxygen, which is essential to all living processes. The hydrosphere is the area of the Earth where water movement and storage occurs. On or beneath the surface, water occurs in liquid or solid form in rivers, lakes, oceans, groundwater, polar ice caps, and glaciers. And it occurs as water vapor in the atmosphere. Carbon is found in all organic macromolecules and is an important constituent of fossil fuels. Nitrogen is a major component of our nucleic acids and proteins and is critical to human agriculture. Phosphorus, a major component of nucleic acid (along with nitrogen), is one of the main ingredients in artificial fertilizers used in agriculture and their associated environmental impacts on our surface water. Sulfur is critical to the 3-D folding of proteins, such as in disulfide binding.

The cycling of these elements is interconnected. For example, the movement of water is critical for the leaching of nitrogen and phosphate into rivers, lakes, and oceans. Furthermore, the ocean itself is a major reservoir for carbon. Thus, mineral nutrients are cycled, either rapidly or slowly, through the entire biosphere, from one living organism to another, and between the biotic and abiotic world.

The Water (Hydrologic) Cycle

Water is the basis of all living processes on Earth. When examining the stores of water on Earth, 97.5 percent of it is non-potable salt water, shown below. Of the remaining water, 99 percent is locked underground as water or as ice. Thus, less than 1 percent of fresh water is easily accessible from lakes and rivers. Many living things, such as plants, animals, and fungi, are dependent on that small amount of fresh surface water, a lack of which can have massive effects on ecosystem dynamics. To be successful, organisms must adapt to fluctuating water supplies. Humans, of course, have developed technologies to increase water availability, such as digging wells to harvest groundwater, storing rainwater, and using desalination to obtain drinkable water from the ocean.

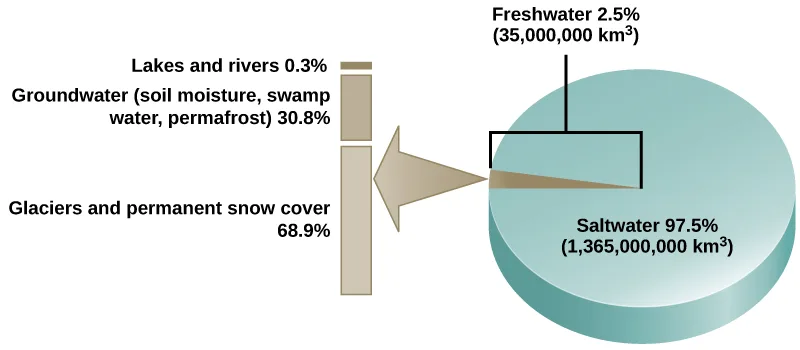

Extended description

A squat teal 3-D disc at right represents all of Earth’s water, labeled Saltwater 97.5% (1,365,000,000 km³). A thin wedge cut from its edge is bracketed and labeled Freshwater 2.5% (35,000,000 km³); a wide tan arrow expands that wedge into a narrow vertical bar at left, divided into three segments read top to bottom: Lakes and rivers 0.3% (a thin sliver at the top), Groundwater (soil moisture, swamp water, permafrost) 30.8% (the middle segment), and Glaciers and permanent snow cover 68.9% (the largest, bottom segment).

Water cycling is extremely important to ecosystem dynamics. Water has a major influence on climate and, thus, on the environments of ecosystems. Most of the water on Earth is stored for long periods in the oceans, underground, and as ice. The figure below illustrates the average time that an individual water molecule may spend in the Earth’s major water reservoirs. Residence time is a measure of the average time an individual water molecule stays in a particular reservoir.

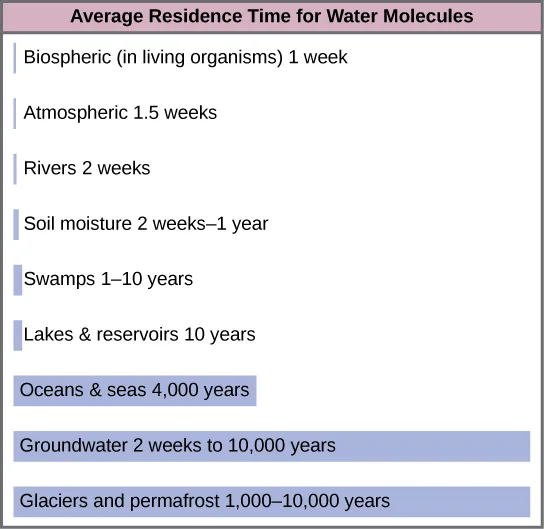

Extended description

Nine rows, read top to bottom, each naming a reservoir and its printed residence time. The top six rows carry only a short vertical tick mark before the text: Biospheric (in living organisms), 1 week; Atmospheric, 1.5 weeks; Rivers, 2 weeks; Soil moisture, 2 weeks to 1 year; Swamps, 1 to 10 years; Lakes and reservoirs, 10 years. The bottom three rows are set off with a full-width lavender highlight bar, marking the longest residence times: Oceans and seas, 4,000 years; Groundwater, 2 weeks to 10,000 years; Glaciers and permafrost, 1,000 to 10,000 years.

There are various processes that occur during the cycling of water, shown below. These processes include the following:

• evaporation/sublimation
• condensation/precipitation
• subsurface water flow
• surface runoff/snowmelt
• streamflow

The water cycle is driven by the sun’s energy as it warms the oceans and other surface waters. This leads to the evaporation (water to water vapor) of liquid surface water and the sublimation (ice to water vapor) of frozen water, which deposits large amounts of water vapor into the atmosphere. Over time, this water vapor condenses into clouds as liquid or frozen droplets and is eventually followed by precipitation (rain or snow), which returns water to the Earth’s surface. Rain eventually permeates into the ground, where it may evaporate again if it is near the surface, flow beneath the surface, or be stored for long periods. More easily observed is surface runoff: the flow of fresh water either from rain or melting ice. Runoff can then make its way through streams and lakes to the oceans or flow directly to the oceans themselves.

Rain and surface runoff are major ways in which minerals, including carbon, nitrogen, phosphorus, and sulfur, are cycled from land to water. The environmental effects of runoff will be discussed later as these cycles are described.

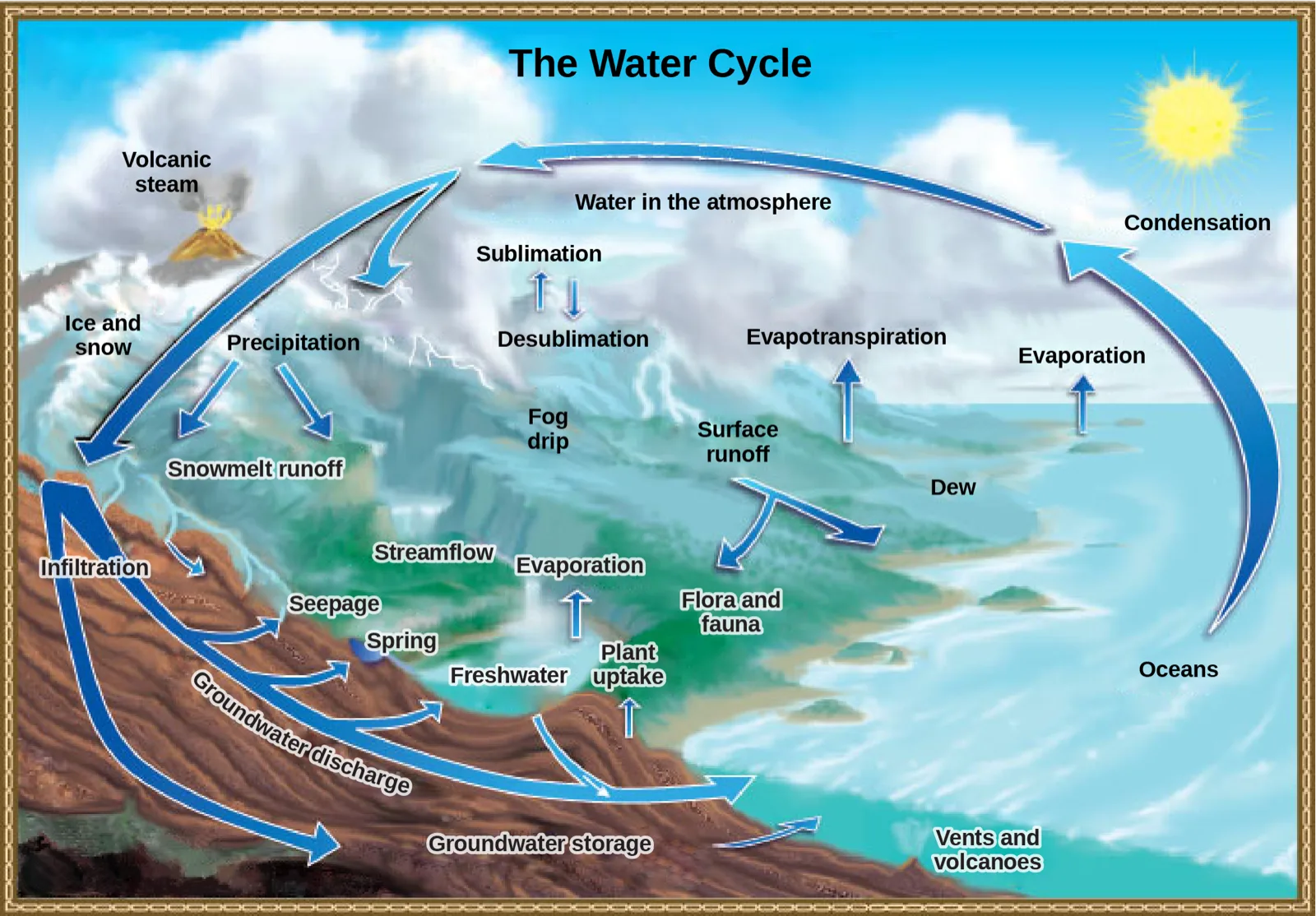

Extended description

Read left to right and top to bottom. At upper left, a volcano emits Volcanic steam that curves up toward Water in the atmosphere at top center. To its left, an ice-capped mountain shows Precipitation falling and a paired up/down arrow labeled Sublimation (rising) and Desublimation (falling) beside it, with Precipitation also feeding Snowmelt runoff down the mountainside. At upper right, Evaporation rises from the ocean in a long blue arrow that curves left as it labels Condensation, rejoining the atmosphere band. Evapotranspiration is a tall arrow rising from the vegetated headland right of center; below and left of it, Surface runoff labels two arrows fanning down toward a Flora and fauna label near the shore, and Dew is a bare label (no arrow) to their right. Fog drip is a bare label on the mountain slopes at center, beneath the lightning, and a second, smaller Evaporation arrow rises from the Freshwater pool. Down the left-center of the drawing, Streamflow labels a descending stream that passes Seepage and a Spring feeding a Freshwater pool, with Plant uptake arrows rising from that pool. Infiltration arrows carry surface water into Groundwater storage in the brown subsurface layer, and Groundwater discharge arrows return it to the Freshwater pool and out to the ocean. At lower right, Vents and volcanoes labels arrows rising from the ocean floor into the water, and Oceans labels the blue water body at right.

The Carbon Cycle

Carbon is the second most abundant element in living organisms. Carbon is present in all organic molecules, and its role in the structure of macromolecules is of primary importance to living organisms.

The carbon cycle is most easily studied as two interconnected sub-cycles: one dealing with rapid carbon exchange among living organisms and the other dealing with the long-term cycling of carbon through geologic processes. The entire carbon cycle is shown below.

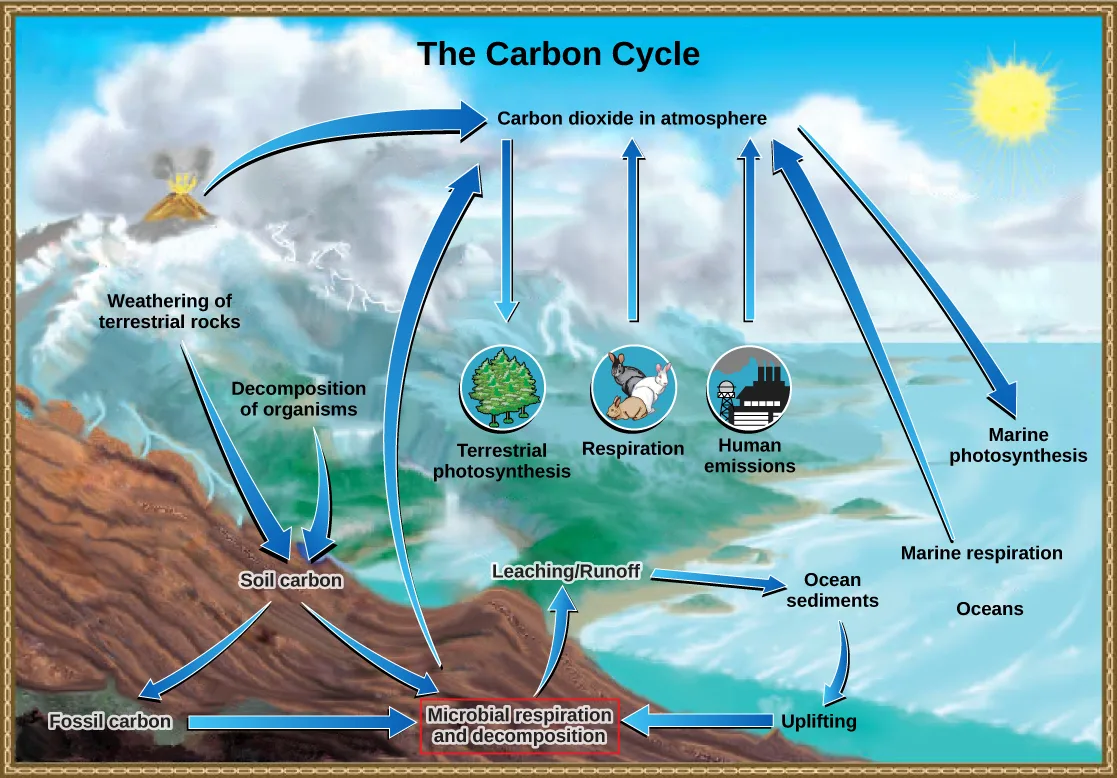

Extended description

Read from the atmosphere band downward. At top center, Carbon dioxide in atmosphere. A curved arrow from a volcano at upper left adds carbon dioxide to the atmosphere; a second, longer curved arrow rises from the Microbial respiration and decomposition box at bottom center, passing left of the Terrestrial photosynthesis icon, and also points into the atmosphere. Beneath the atmosphere band sit three icons in a row: a thick arrow points down from the atmosphere into Terrestrial photosynthesis (removing carbon dioxide), while thin arrows point up from Respiration and from Human emissions into the atmosphere (adding carbon dioxide). At right, two diagonal arrows cross the sky: one points down from the atmosphere into Marine photosynthesis (removing carbon dioxide), the other points up from Marine respiration into the atmosphere (adding carbon dioxide). At left, Weathering of terrestrial rocks and Decomposition of organisms both feed down into Soil carbon; Soil carbon feeds Fossil carbon below it, and Fossil carbon connects by a rightward arrow to the Microbial respiration and decomposition box at bottom center. An arrow rises from that box up to Leaching/Runoff, which points right into Ocean sediments; Ocean sediments feeds down into Uplifting, which points left back into the Microbial respiration and decomposition box, closing that loop.

The Biological Carbon Cycle

Living organisms are connected in many ways, even between ecosystems. A good example of this connection is the exchange of carbon between autotrophs and heterotrophs within and between ecosystems by way of atmospheric carbon dioxide. Carbon dioxide is the basic building block that most autotrophs use to build multicarbon, high energy compounds, such as glucose. The energy harnessed from the sun is used by these organisms to form the covalent bonds that link carbon atoms together. These chemical bonds thereby store this energy for later use in the process of respiration. Most terrestrial autotrophs obtain their carbon dioxide directly from the atmosphere, while marine autotrophs acquire it in the dissolved form from the partial ionization of carbonic acid into bicarbonate ions (H₂CO₃⁻). However carbon dioxide is acquired, a by-product of the process is oxygen. The photosynthetic organisms are responsible for creating the oxygen content of our atmosphere; oxygen makes up approximately 21 percent of the atmosphere that we observe today.

Heterotrophs and autotrophs are partners in biological carbon exchange (especially the primary consumers, largely herbivores). Heterotrophs acquire the high-energy carbon compounds from the autotrophs by consuming them, and breaking them down by respiration to obtain cellular energy, such as ATP. The most efficient type of respiration, aerobic respiration, requires oxygen obtained from the atmosphere or dissolved in water. Thus, there is a constant exchange of oxygen and carbon dioxide between the autotrophs (which need the carbon) and the heterotrophs (which need the oxygen). Gas exchange through the atmosphere and water is one way that the carbon cycle connects all living organisms on Earth.

The Biogeochemical Carbon Cycle

The movement of carbon through the land, water, and air is complex, and in many cases, it occurs much more slowly geologically than as seen between living organisms. Carbon is stored for long periods in what are known as carbon reservoirs, which include the atmosphere, bodies of liquid water (mostly oceans), ocean sediment, soil, land sediments (including fossil fuels), and the Earth’s interior.

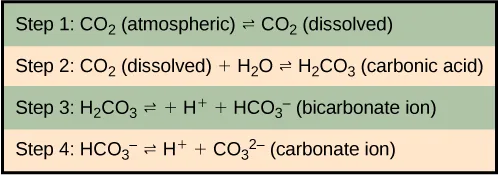

As stated, the atmosphere is a major reservoir of carbon in the form of carbon dioxide and is essential to the process of photosynthesis. The level of carbon dioxide in the atmosphere is greatly influenced by the reservoir of carbon in the oceans. The exchange of carbon between the atmosphere and water reservoirs influences how much carbon is found in each location, and each one affects the other reciprocally. Carbon dioxide (CO₂) from the atmosphere dissolves in water and combines with water molecules to form carbonic acid, and then it ionizes to carbonate and bicarbonate ions, shown below.

The equilibrium coefficients are such that more than 90 percent of the carbon in the ocean is found as bicarbonate ions. Some of these ions combine with seawater calcium to form calcium carbonate (CaCO₃), a major component of marine organism shells. These organisms eventually form sediments on the ocean floor. Over geologic time, the calcium carbonate forms limestone, which comprises the largest carbon reservoir on Earth.

On land, carbon is stored in soil as a result of the decomposition of living organisms (by decomposers) or from weathering of terrestrial rock and minerals. This carbon can be leached into the water reservoirs by surface runoff. Deeper underground, on land and at sea, are fossil fuels: the anaerobically decomposed remains of plants that take millions of years to form. Fossil fuels are considered a nonrenewable resource because their use far exceeds their rate of formation. A nonrenewable resource, such as fossil fuel, is either regenerated very slowly or not at all. Another way for carbon to enter the atmosphere is from land (including land beneath the surface of the ocean) by the eruption of volcanoes and other geothermal systems. Carbon sediments from the ocean floor are taken deep within the Earth by the process of subduction: the movement of one tectonic plate beneath another. Carbon is released as carbon dioxide when a volcano erupts or from volcanic hydrothermal vents.

Humans contribute to atmospheric carbon by the burning of fossil fuels and other materials. Since the Industrial Revolution, humans have significantly increased the release of carbon and carbon compounds, which has in turn affected the climate and overall environment.

Animal husbandry by humans also increases atmospheric carbon. The large numbers of land animals raised to feed the Earth’s growing population results in increased carbon dioxide levels in the atmosphere due to farming practices and respiration and methane production. This is another example of how human activity indirectly affects biogeochemical cycles in a significant way. Although much of the debate about the future effects of increasing atmospheric carbon on climate change focuses on fossils fuels, scientists take natural processes, such as volcanoes and respiration, into account as they model and predict the future impact of this increase.

The Nitrogen Cycle

Getting nitrogen into the living world is difficult. Plants and phytoplankton are not equipped to incorporate nitrogen from the atmosphere (which exists as tightly bonded, triple covalent N₂) even though this molecule comprises approximately 78 percent of the atmosphere. Nitrogen enters the living world via free-living and symbiotic bacteria, which incorporate nitrogen into their macromolecules through nitrogen fixation (conversion of N₂). Cyanobacteria live in most aquatic ecosystems where sunlight is present; they play a key role in nitrogen fixation. Cyanobacteria are able to use inorganic sources of nitrogen to “fix” nitrogen. Rhizobium bacteria live symbiotically in the root nodules of legumes (such as peas, beans, and peanuts) and provide them with the organic nitrogen they need. (For example, gardeners often grow peas both for their produce and to naturally add nitrogen to the soil. This practice goes back to ancient times, even if the science has only been recently understood.) Free-living bacteria, such as Azotobacter, are also important nitrogen fixers.

Organic nitrogen is especially important to the study of ecosystem dynamics since many ecosystem processes, such as primary production and decomposition, are limited by the available supply of nitrogen. As shown below, the nitrogen that enters living systems by nitrogen fixation is successively converted from organic nitrogen back into nitrogen gas by bacteria. This process occurs in three steps in terrestrial systems: ammonification, nitrification, and denitrification. First, the ammonification process converts nitrogenous waste from living animals or from the remains of dead animals into ammonium (NH₄⁺) by certain bacteria and fungi. Second, the ammonium is converted to nitrites (NO₂⁻) by nitrifying bacteria, such as Nitrosomonas, through nitrification. Subsequently, nitrites are converted to nitrates (NO₃⁻) by similar organisms. Third, the process of denitrification occurs, whereby bacteria, such as Pseudomonas and Clostridium, convert the nitrates into nitrogen gas, allowing it to reenter the atmosphere.

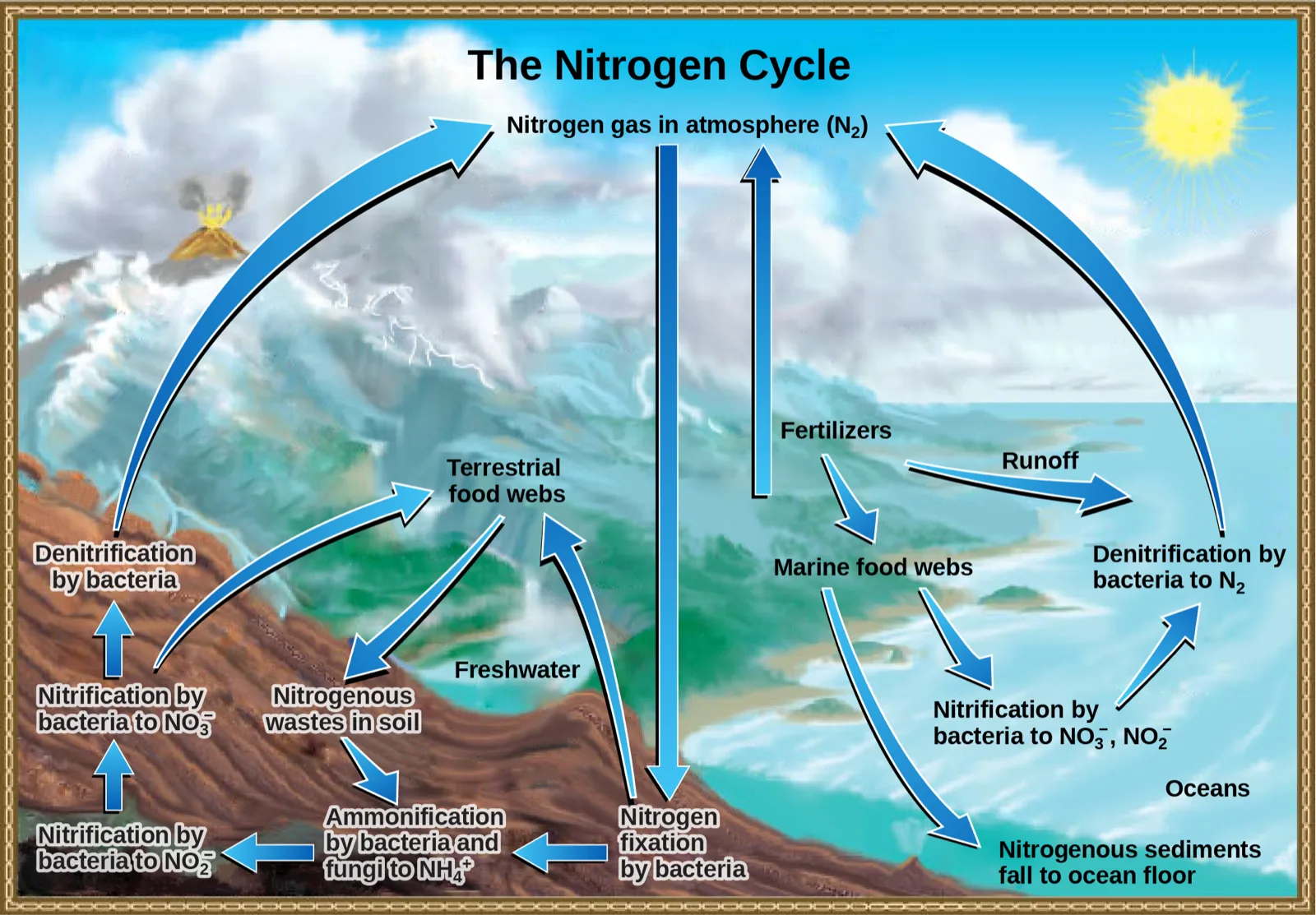

Extended description

At top center, Nitrogen gas in atmosphere (N₂). A thick vertical arrow runs straight down the middle of the figure from the atmosphere to Nitrogen fixation by bacteria at the bottom; a second, unlabeled, lighter vertical arrow near it rises from the marine side of the figure back up to the atmosphere. On the left (terrestrial) side, an arrow leads left from Nitrogen fixation by bacteria to Ammonification by bacteria and fungi to NH₄⁺; a diagonal arrow also leads from Nitrogen fixation by bacteria up to Terrestrial food webs, and a second diagonal arrow leads from Terrestrial food webs down to Nitrogenous wastes in soil, which feeds down into the same Ammonification box. From Ammonification, an arrow leads left to Nitrification by bacteria to NO₂⁻, then up to Nitrification by bacteria to NO₃⁻, then up to Denitrification by bacteria, then a long curved arrow sweeps up and right, past a volcano, back to Nitrogen gas in atmosphere. On the right (marine) side, Fertilizers feeds down into Marine food webs, and a separate Runoff arrow leads right from the land toward the denitrification box near the top of the marine chain. From Marine food webs, one arrow leads down to Nitrification by bacteria to NO₃⁻, NO₂⁻ and a second leads down to Nitrogenous sediments fall to ocean floor. From the marine nitrification box, an arrow leads up to Denitrification by bacteria to N₂, and a long curved arrow sweeps up and left back to Nitrogen gas in atmosphere, mirroring the terrestrial curve. Freshwater and Oceans are printed as plain labels with no arrows of their own.

Human activity can release nitrogen into the environment by two primary means: the combustion of fossil fuels, which releases different nitrogen oxides, and by the use of artificial fertilizers in agriculture, which are then washed into lakes, streams, and rivers by surface runoff. Atmospheric nitrogen is associated with several effects on Earth’s ecosystems including the production of acid rain (as nitric acid, HNO₃) and greenhouse gas (as nitrous oxide, N₂O) potentially causing climate change. A major effect from fertilizer runoff is saltwater and freshwater eutrophication, a process whereby nutrient runoff causes the excess growth of microorganisms, depleting dissolved oxygen levels and killing ecosystem fauna.

A similar process occurs in the marine nitrogen cycle, where the ammonification, nitrification, and denitrification processes are performed by marine bacteria. Some of this nitrogen falls to the ocean floor as sediment, which can then be moved to land in geologic time by uplift of the Earth’s surface and thereby incorporated into terrestrial rock. Although the movement of nitrogen from rock directly into living systems has been traditionally seen as insignificant compared with nitrogen fixed from the atmosphere, a recent study showed that this process may indeed be significant and should be included in any study of the global nitrogen cycle.

The Phosphorus Cycle

Phosphorus is an essential nutrient for living processes; it is a major component of nucleic acid and phospholipids, and, as calcium phosphate, makes up the supportive components of our bones. Phosphorus is often the limiting nutrient (necessary for growth) in aquatic ecosystems, shown below.

Phosphorus occurs in nature as the phosphate ion (PO₄³⁻). In addition to phosphate runoff as a result of human activity, natural surface runoff occurs when it is leached from phosphate-containing rock by weathering, thus sending phosphates into rivers, lakes, and the ocean. This rock has its origins in the ocean. Phosphate-containing ocean sediments form primarily from the bodies of ocean organisms and from their excretions. However, in remote regions, volcanic ash, aerosols, and mineral dust may also be significant phosphate sources. This sediment then is moved to land over geologic time by the uplifting of areas of the Earth’s surface.

Phosphorus is also reciprocally exchanged between phosphate dissolved in the ocean and marine ecosystems. The movement of phosphate from the ocean to the land and through the soil is extremely slow, with the average phosphate ion having an oceanic residence time between 20,000 and 100,000 years.

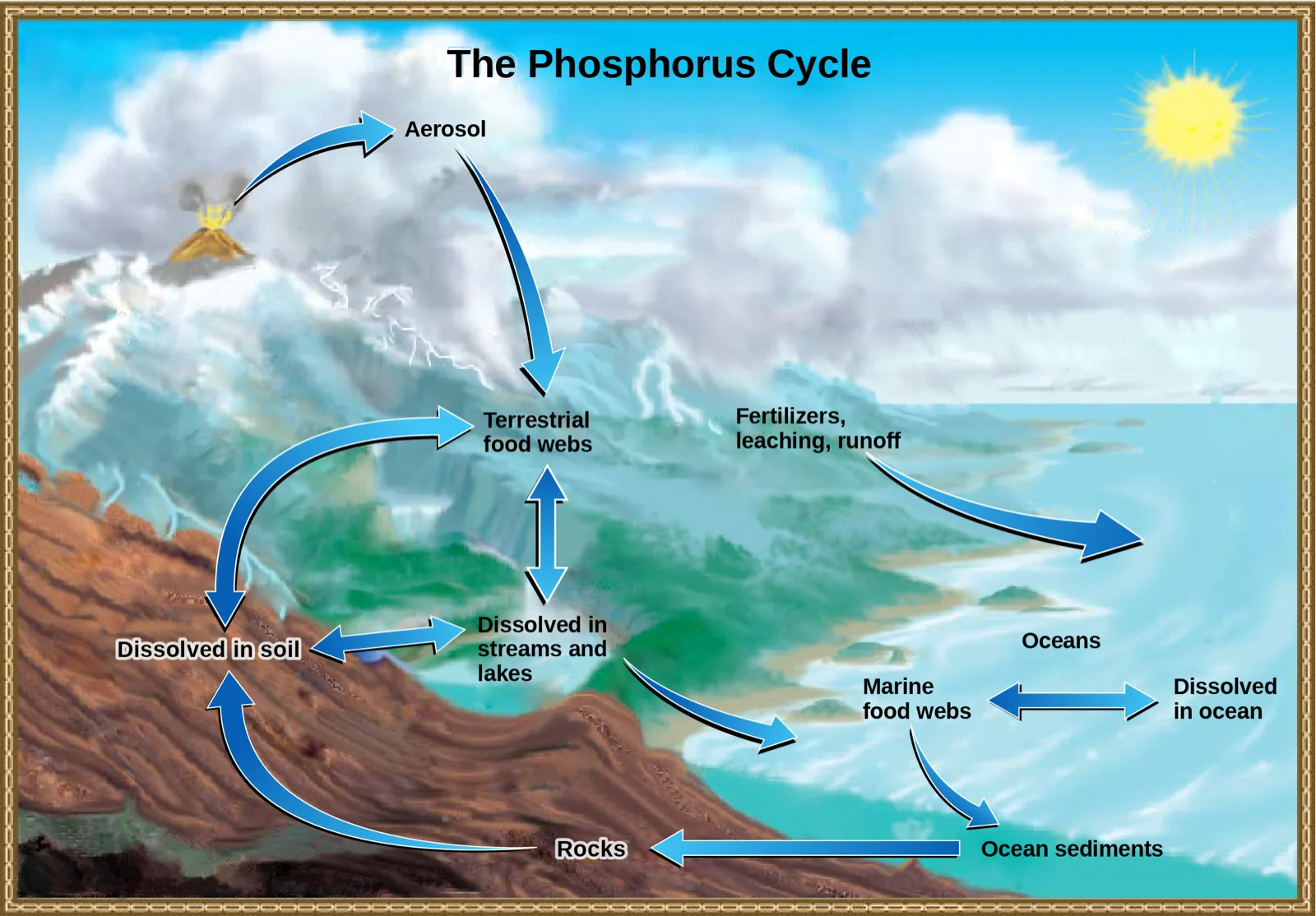

Extended description

A volcano at upper left sends a curved arrow up to Aerosol; Aerosol sends a second arrow down into Terrestrial food webs. Terrestrial food webs connects by a two-headed vertical arrow to Dissolved in streams and lakes below it, which connects by a two-headed horizontal arrow to Dissolved in soil at its left. A separate curved arrow rises from Dissolved in soil back up to Terrestrial food webs, and another curved arrow rises from Rocks at the bottom up into Dissolved in soil. A horizontal arrow at the bottom leads left from Ocean sediments to Rocks. On the ocean side, a curved arrow leads from Dissolved in streams and lakes down and right toward Marine food webs, and a separate diagonal arrow leads from Marine food webs down into Ocean sediments. Marine food webs also connects by a two-headed horizontal arrow to Dissolved in ocean. At upper right, a large diagonal arrow labeled Fertilizers, leaching, runoff leads from the land into the open ocean, and Oceans is printed nearby as a plain label with no arrow of its own.

As discussed in Ecology and the Biosphere, excess phosphorus and nitrogen that enters these ecosystems from fertilizer runoff and from sewage causes excessive growth of microorganisms and depletes the dissolved oxygen, which leads to the death of many ecosystem fauna, such as shellfish and finfish. This process is responsible for dead zones in lakes and at the mouths of many major rivers, shown below.

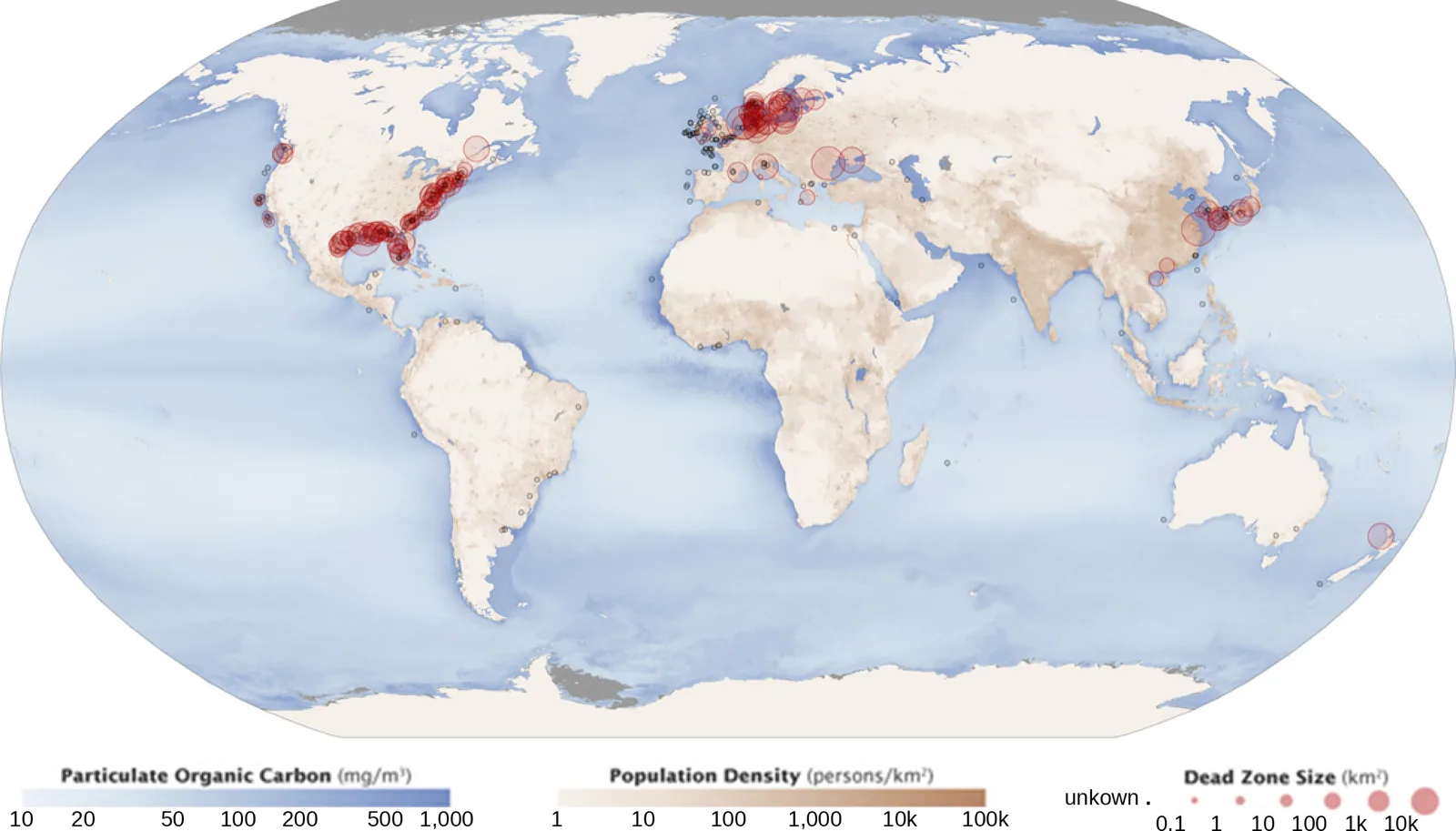

Extended description

The map carries three legends below it: a blue gradient for Particulate Organic Carbon (10 to 1,000 mg/m³), a tan gradient for Population Density (1 to 100k persons/km²), and a scale of red circles for Dead Zone Size (an unknown-size dot, then 0.1, 1, 10, 100, 1k, and 10k km²). On the map, clusters of large red circles mark dead zones along the eastern coast of the United States from New England to the Gulf of Mexico, a smaller cluster off the western coast of the United States, a dense cluster in the North Sea and Baltic Sea off northern Europe, several circles in the Mediterranean Sea, and a cluster off the eastern coast of Asia. Smaller, open (unknown-size) circles dot the coastlines of South America, Africa, and India, and one isolated red circle sits near New Zealand.

As discussed earlier, a dead zone is an area within a freshwater or marine ecosystem where large areas are depleted of their normal flora and fauna; these zones can be caused by eutrophication, oil spills, dumping of toxic chemicals, and other human activities. The number of dead zones has been increasing for several years, and more than 400 of these zones were present as of 2008. One of the worst dead zones is off the coast of the United States in the Gulf of Mexico, where fertilizer runoff from the Mississippi River basin has created a dead zone of over 8463 square miles. Phosphate and nitrate runoff from fertilizers also negatively affect several lake and bay ecosystems including the Chesapeake Bay in the eastern United States.

Everyday Connection. Chesapeake Bay

The Chesapeake Bay has long been valued as one of the most scenic areas on Earth; it is now in distress and is recognized as a declining ecosystem. In the 1970s, the Chesapeake Bay was one of the first ecosystems to have identified dead zones, which continue to kill many fish and bottom-dwelling species, such as clams, oysters, and worms. Several species have declined in the Chesapeake Bay due to surface water runoff containing excess nutrients from artificial fertilizer used on land. The source of the fertilizers (with high nitrogen and phosphate content) is not limited to agricultural practices. There are many nearby urban areas and more than 150 rivers and streams empty into the bay that are carrying fertilizer runoff from lawns and gardens. Thus, the decline of the Chesapeake Bay is a complex issue and requires the cooperation of industry, agriculture, and everyday homeowners.

Of particular interest to conservationists is the oyster population; it is estimated that more than 200,000 acres of oyster reefs existed in the bay in the 1700s, but that number has now declined to only 36,000 acres. Oyster harvesting was once a major industry for Chesapeake Bay, but it declined 88 percent between 1982 and 2007. This decline was due not only to fertilizer runoff and dead zones but also to overharvesting. Oysters require a certain minimum population density because they must be in close proximity to reproduce. Human activity has altered the oyster population and locations, greatly disrupting the ecosystem.

The restoration of the oyster population in the Chesapeake Bay has been ongoing for several years with mixed success. Not only do many people find oysters good to eat, but they also clean up the bay. Oysters are filter feeders, and as they eat, they clean the water around them. In the 1700s, it was estimated that it took only a few days for the oyster population to filter the entire volume of the bay. Today, with changed water conditions, it is estimated that the present population would take nearly a year to do the same job.

Restoration efforts have been ongoing for several years by nonprofit organizations, such as the Chesapeake Bay Foundation. The restoration goal is to find a way to increase population density so the oysters can reproduce more efficiently. Many disease-resistant varieties (developed at the Virginia Institute of Marine Science for the College of William and Mary) are now available and have been used in the construction of experimental oyster reefs. Efforts to clean and restore the bay by Virginia and Delaware have been hampered because much of the pollution entering the bay comes from other states, which stresses the need for interstate cooperation to gain successful restoration.

The new, hearty oyster strains have also spawned a new and economically viable industry—oyster aquaculture—which not only supplies oysters for food and profit, but also has the added benefit of cleaning the bay.

The Sulfur Cycle

Sulfur is an essential element for the macromolecules of living things. As a part of the amino acid cysteine, it is involved in the formation of disulfide bonds within proteins, which help to determine their 3-D folding patterns, and hence their functions. As shown below, sulfur cycles between the oceans, land, and atmosphere. Atmospheric sulfur is found in the form of sulfur dioxide (SO₂) and enters the atmosphere in three ways: from the decomposition of organic molecules, from volcanic activity and geothermal vents, and from the burning of fossil fuels by humans.

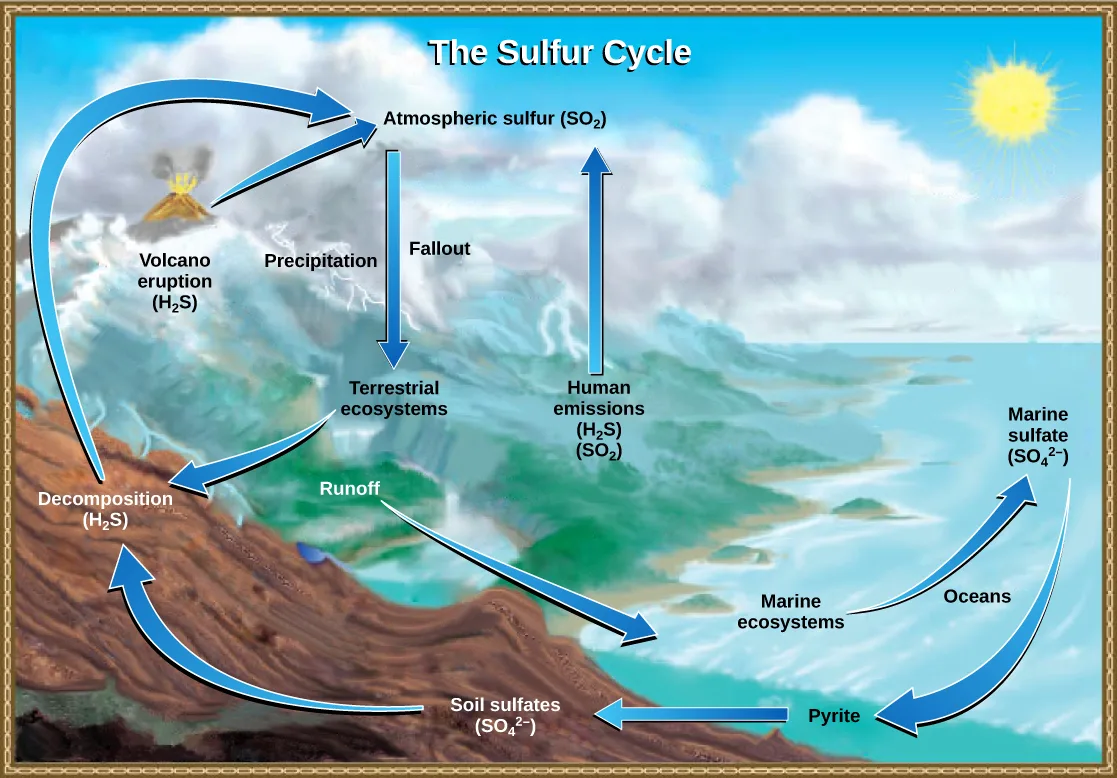

Extended description

At upper left, Volcano eruption (H₂S) sends a curved arrow up and right into Atmospheric sulfur (SO₂); Human emissions (H₂S) (SO₂), at upper center, sends a separate arrow straight up into the same label. A single downward arrow, labeled Precipitation on its left and Fallout on its right, carries sulfur from Atmospheric sulfur down into Terrestrial ecosystems. From Terrestrial ecosystems, one arrow leads down and left into Decomposition (H₂S), and a second, labeled Runoff, leads down and right into the ocean, ending near Marine ecosystems. A long curved arrow rises from Decomposition (H₂S) up and around the left edge of the figure back into Atmospheric sulfur (SO₂). Decomposition (H₂S) also connects down to Soil sulfates (SO₄²⁻) by a curved arrow pointing up into Decomposition. A horizontal arrow leads left from Pyrite into Soil sulfates (SO₄²⁻), and a curved arrow leads down and left from Marine sulfate (SO₄²⁻) into Pyrite. Marine ecosystems connects up to Marine sulfate (SO₄²⁻) by a curved arrow; Oceans is printed nearby as a plain label with no arrow of its own.

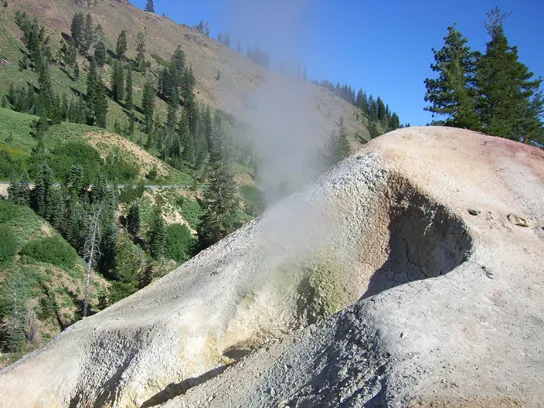

On land, sulfur is deposited in four major ways: precipitation, direct fallout from the atmosphere, rock weathering, and geothermal vents, shown above. Atmospheric sulfur is found in the form of sulfur dioxide (SO₂), and as rain falls through the atmosphere, sulfur is dissolved in the form of weak sulfurous acid (H₂SO₃). Sulfur can also fall directly from the atmosphere in a process called fallout. Also, the weathering of sulfur-containing rocks releases sulfur into the soil. These rocks originate from ocean sediments that are moved to land by the geologic uplifting of ocean sediments. Terrestrial ecosystems can then make use of these soil sulfates (SO₄²⁻), and upon the death and decomposition of these organisms, release the sulfur back into the atmosphere as hydrogen sulfide (H₂S) gas.

Sulfur enters the ocean via runoff from land, from atmospheric fallout, and from underwater geothermal vents. Some ecosystems, such as the hydrothermal-vent community pictured in the previous section, rely on chemoautotrophs using sulfur as a biological energy source. This sulfur then supports marine ecosystems in the form of sulfates.

Human activities have played a major role in altering the balance of the global sulfur cycle. The burning of large quantities of fossil fuels, especially from coal, releases larger amounts of sulfur dioxide and hydrogen sulfide gas into the atmosphere. Acid rain is caused by rainwater falling to the ground through mostly sulfur dioxide gas, turning it into weak sulfurous acid. Acid rain damages the natural environment by lowering the pH of lakes, which kills many of the resident fauna; it also affects the man-made environment through the chemical degradation of buildings. For example, many marble monuments, such as the Lincoln Memorial in Washington, DC, have suffered significant damage from acid rain over the years.

Summary

Mineral nutrients are cycled through ecosystems and their environment. Of particular importance are water, carbon, nitrogen, phosphorus, and sulfur. All of these cycles have major impacts on ecosystem structure and function. A variety of human activities, such as pollution, oil spills, and other events have damaged ecosystems, potentially causing global climate change. The health of Earth depends on understanding these cycles and how to protect the environment from irreversible damage.

Key terms

• acid rain — corrosive rain caused by rainwater falling to the ground through sulfur dioxide gas, turning it into weak sulfuric acid; can damage structures and ecosystems
• biogeochemical cycle — cycling of mineral nutrients through ecosystems and through the nonliving world
• dead zone — area within an ecosystem in lakes and near the mouths of rivers where large areas of ecosystems are depleted of their normal flora and fauna; these zones can be caused by eutrophication, oil spills, dumping of toxic chemicals, and other human activities
• eutrophication — process whereby nutrient runoff causes the excess growth of microorganisms, depleting dissolved oxygen levels and killing ecosystem fauna
• fallout — direct deposit of solid minerals on land or in the ocean from the atmosphere
• hydrosphere — area of the Earth where water movement and storage occurs
• nonrenewable resource — resource, such as fossil fuel, that is either regenerated very slowly or not at all
• residence time — measure of the average time an individual water molecule stays in a particular reservoir
• subduction — movement of one tectonic plate beneath another

Practice

Discuss the biogeochemical cycles of water, carbon, nitrogen, phosphorus, and sulfur

Explain how human activities have impacted these cycles and the potential consequences for Earth
